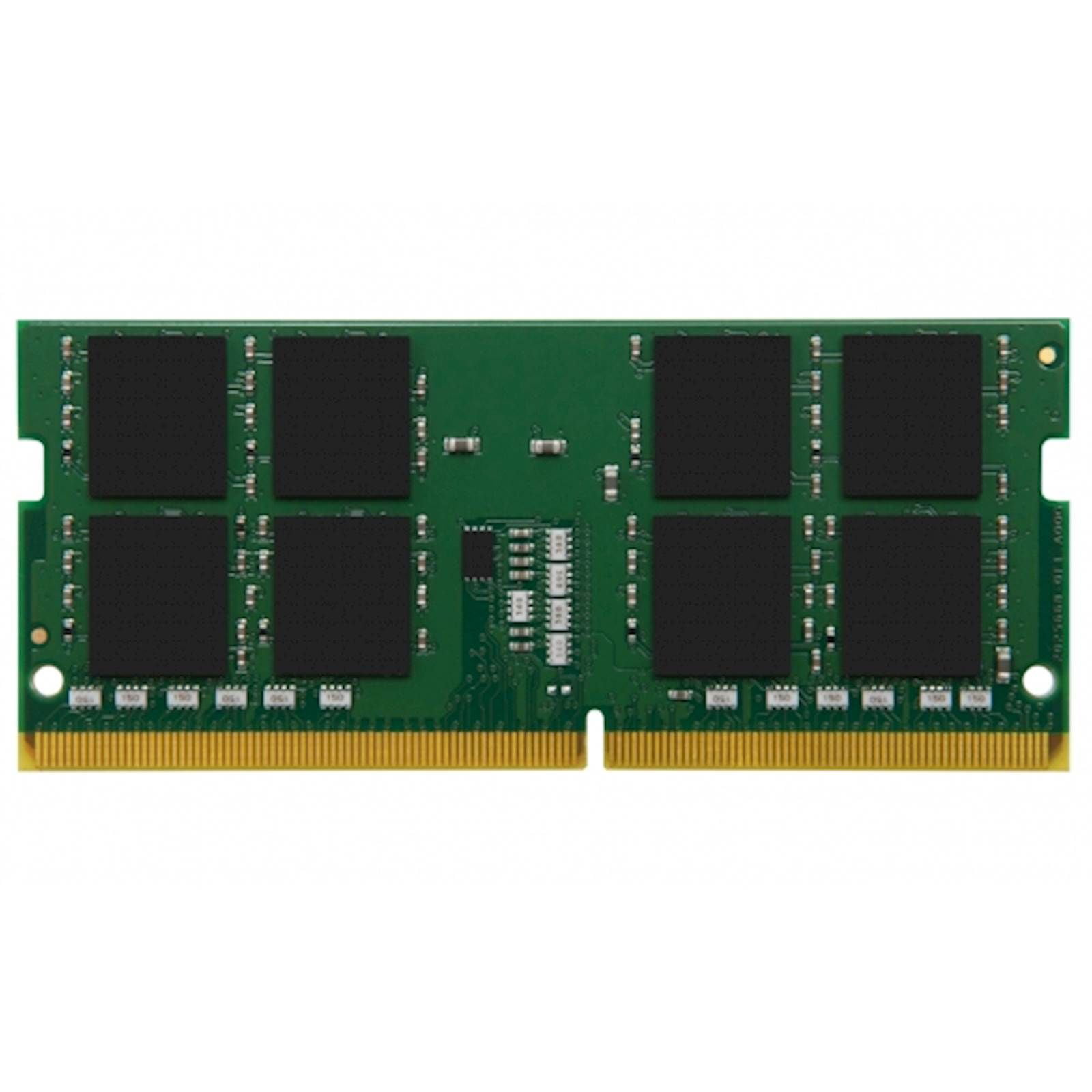

Kingston Technology ValueRAM memory module 32 GB 1 x 32 GB DDR4 3200 MT/s 260-pi

KINGSTON

The ValueRAM KVR32S22D8/32 is a high-performance 32GB DDR4-3200 SDRAM memory module designed to deliver reliable and efficient system performance. Built with a 4G x 64-bit architecture, this dual-rank (2Rx8), non-ECC module is constructed using sixteen 2G x 8-bit FBGA components, ensuring stability and consistent data handling for demanding computing environments. Operating at a JEDEC-standard speed of DDR4-3200 with CL22 latency (22-22-22) and a low operating voltage of 1.2V, the module offers an excellent balance between performance and power efficiency. The integrated SPD EEPROM is pre-programmed to JEDEC specifications, enabling seamless compatibility and automatic configuration across supported platforms. The module features a 260-pin DIMM design with gold-plated contact fingers for improved durability and signal integrity. Engineered with advanced DDR4 technologies, the KVR32S22D8/32 supports low-power auto self refresh (LPASR), data bus inversion (DBI), on-die termination (ODT), and on-die VREFDQ generation and calibration. It incorporates 16 internal memory banks arranged in 4 bank groups, along with support for burst length (BL8) and burst chop (BC4) operations, selectable both through the mode register set and on-the-fly. Designed for dependable operation in a wide range of environments, this module supports an operating temperature range of 0°C to +85°C and a storage temperature range of -55°C to +100°C. It complies with RoHS standards, is halogen-free, and meets UL 94 V-0 safety requirements. With a compact PCB height of 30.00mm (1.18), the ValueRAM KVR32S22D8/32 is a robust and efficient memory solution for modern systems requiring high capacity and dependable performance.
