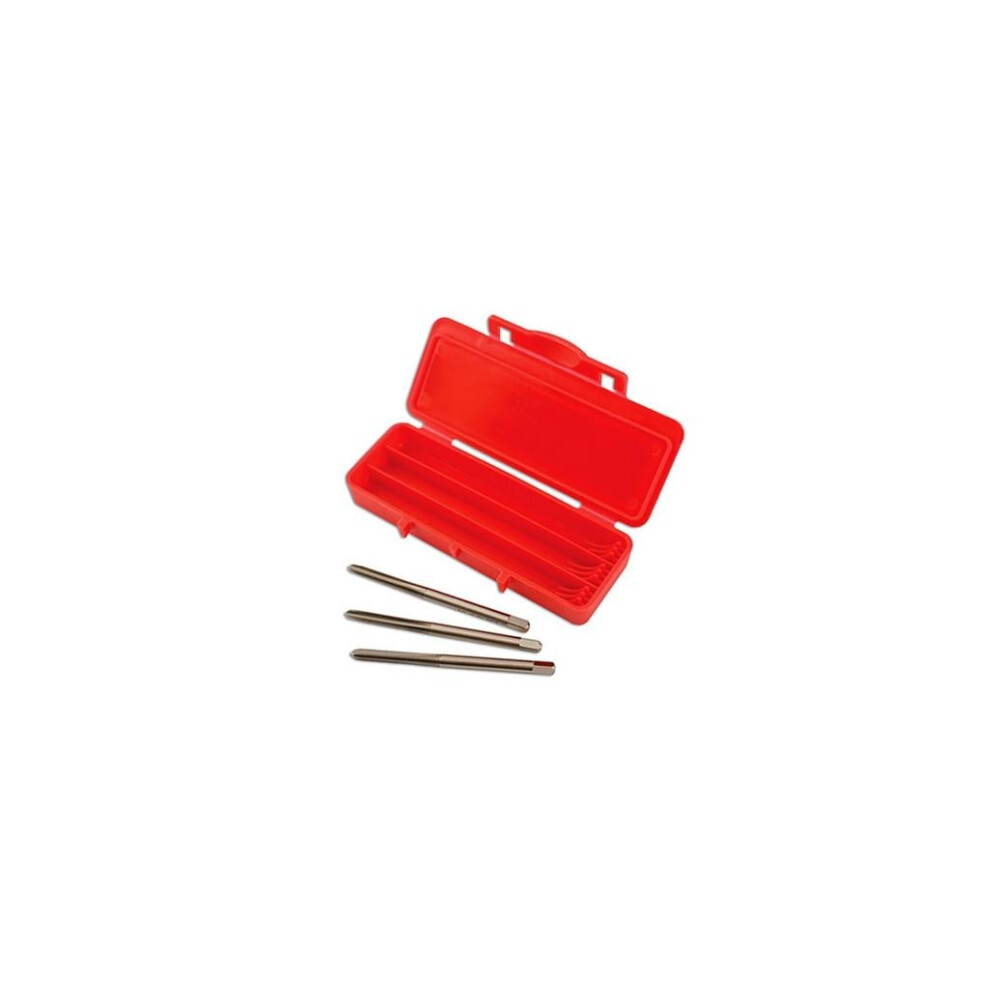

New Dormer Pramet Tap Set - E500 M3 - 3 Piece 32030
Dormer Pramet
Dormer E500M3NO6 HSS Straight Flute Hand Tap M3 × 0.5mm (Pack of 3) This Dormer E500M3NO6 set contains three high-speed steel (HSS) straight flute hand taps, ideal for creating M3 x 0.5mm ISO-metric threads. The set includes taps with differing lead tapers (6-8xP, 4-6xP, and 2-3xP) for optimal thread cutting in free machining and plain carbon steel. Suitable for both through and blind hole applications, these taps offer a 1.5xD usable tool depth to diameter ratio. The bright (uncoated) finish ensures smooth operation. Conforms to ISO 529 standards. Features High-Speed Steel (HSS) construction Straight flute design Metric Coarse thread form ISO 529 compliant Suitable for through or blind holes 1.5xD usable tool depth to diameter ratio Bright (uncoated) finish Pack of 3 taps (taper, second, and plug) Specifications Thread Size: M3 x 0.5mm Shank Diameter: 3.15mm Square Drive: 2.5mm Threading Length: 12.5mm Overall Length: 48mm Pre-machined Hole Diameter: 2.5mm Clamping Length (LSC): 5mm Clamping Width (WSC): 2.5mm Connection Diameter (DCON MS): 3.15mm Flute Count (NOF): 3 Usable Length (LU): 12.5mm
Compare prices (15 shops)
| shop | Price | Action |
|---|---|---|
| RS Components Ltd- UK | 28,91 GBP | Go to shop |
| Tooled Up | 30,95 GBP | Go to shop |
| BP Tools UK | 38,86 GBP | Go to shop |
|
39,01 GBP | Go to shop |
|
|
39,01 GBP | Go to shop |
| Site Supplies UK | 39,99 GBP | Go to shop |
|
40,39 GBP | Go to shop |
|
41,67 GBP | Go to shop |
|
43,26 GBP | Go to shop |
|
|
45,52 GBP | Go to shop |
|
|
47,76 GBP | Go to shop |
|
|
49,53 GBP | Go to shop |
| RS Components Ltd- UK | 49,66 GBP | Go to shop |
|
|
63,50 GBP | Go to shop |
|
|
63,50 GBP | Go to shop |
